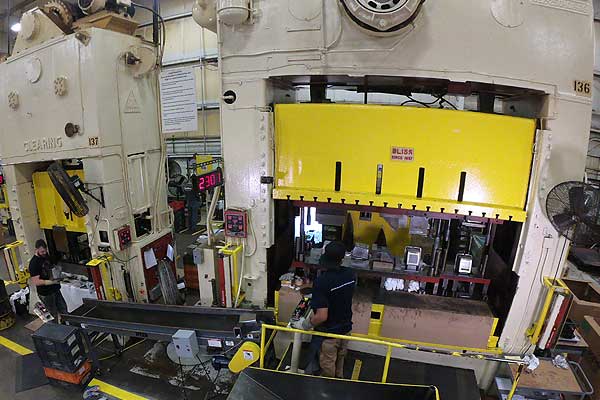

Automatics Presses

  1. 500 ton Bliss Straight Side 84"x51" Material .025 to .250 Max Width 14"
  2. 500 ton Bliss Draw Link 108"x54" Material .025 to .125 Max Width 32"
  3. 400 ton Bliss Draw Link 96"x48" Material .025 to .125 Max Width 24"
  4. 200 ton Minster Straight Side 84"x48" Material .025 to .150 Max Width 14"
  5. 200ton Minster Straight Side 84"x48" Material .o25 to .125 Max Width 20"
  6. 600 ton Blow 144"x60" Material .035 to .125 Max Width 52"

Single Hit Presses

  1. 400 ton Clearing 72"x50"
  2. 250 ton Bliss 115"x60"
  3. 100 ton Danly 38"x30"
  4. 150 ton Clearing 50"x33"
  5. 110 ton USI 45"X38"

Welding

  1. Seven Resistance Welder for spot and projection welding.

Boehm's CAD software includes:

  • Inventor 7.0, which includes AutoCAD 2004 with Mechanical Desktop 7.0.
  • Flat Blank information directly from IGIS file
  • VISI-Progress (modeling & progressive die design)
  • ACIS-BiDirectional Translator
  • Pro/E-Import Translator
  • CATIA V5 Import Translator
  • UG Import Translator
  • IGES Translator
  • BOBCAD20


The following format extensions can be read at Boehm:
  • .dwg (for any of the AutoCAD packages)
  • .dxf (for 2D information only)
  • .igs (for 3D information only)
  • .prt (for 2D or 3D information)
  • step file (preferred for 3D)
  • WKF (Visi)
  • CAD (BOBCAD20)
  • STL
